These 6 units are the most suitable for manufacturing "connecter" and "micro-sized precise products".
1. NISSEI EP5-1EF (2003) ** ELECTRIC MACHINE **
2. NISSEI EP5-1EF (2003) ** ELECTRIC MACHINE **
3. NISSEI NS20-2A (2005)
4. NISSEI NS20-2A (DEC, 2005)
5. SUMITOMO M30-C26 (1997)
6. SUMITOMO M30-C26 (1998)
1. NISSEI EP5-1EF (2003) ** ELECTRIC MACHINE ** Screw dia. : 16mm / Injection Capacity : 8cm3
2. NISSEI EP5-1EF (2003) ** ELECTRIC MACHINE ** Screw dia. : 16mm / Injection Capacity : 8cm3
3. NISSEI NS20-2A (2005) Screw dia. : 16mm / Injection Capacity : 13cm3
4. NISSEI NS20-2A (DEC, 2005) Screw dia. : 22mm / Injection Capacity : 25cm3
5. SUMITOMO M30-C26 (1997) Screw dia. : 14mm / Injection Capacity : 6.2cm3
6. SUMITOMO M30-C26 (1998) Screw dia. : 14mm / Injection Capacity : 6.2cm3

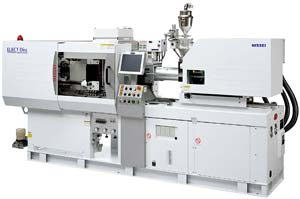

NISSEI NE50-5E
1. Excellent Transfer Performance by high-performance servomotors2. Precise Metering Control (PMC) System
3. High-rigid Clamping Structure
4. High-cycle Molding
5. High Energy Saving
Applicable Discs
CD, CD-R, DVD-ROM, DVD-RAM, DVD-R, BD, HD-DVD
Specifications
| MODEL | NE50-5E | |
| CLAMPING FORCE | tf | 50 |
| SCREW DIA. | mm | 28 |
| INJECTION CAPACITY | cm3 | 57 |
| INJECTION SPEED | mm/s | 330 |
| CLAMPING STROKE | mm | 170 |
| MOLD THICKNESS | mm | 180～240 |
| TIE BAR CLEARANCE | mm | 330 x 330 |
| HEATER BAND CAPACITY | kW | 6.15 |
